The current page:Home > Products > Welding robot system > Positioning system
Products

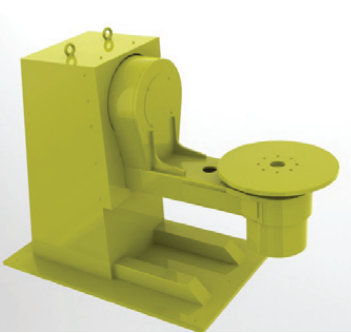

L type positioner

Feature code:

Model

TRS-L50 TRS-L100


1st axis


Rated handling capacity(kg)

800

1200

Rated output torque(N*M)

1078

2816.5

Rated moment of inertia GD^2/4(kg*m2)

292.9

657.0

Rotating angle(°)

±180°

±180°

Rotating speed(degree/sec)

56°/sec

42.8°/sec


2

Rated handling capacity(kg)

800 120

Rated output torque(N*M)

1078 2816.5

Rated moment of inertia GD^2/4(kg*m2)

292.9 657.0

Rotating angle(°)

±180°° ±180

Rotating speed(degree/sec)

56°/sec 42.8°/sec

Distance between loading gravity center and 1st axis center(mm)

≤350 ≤700

Distance between loading gravity center and 2nd axis center(mm)

≤100 ≤100

Allowable clamper weight(kg)

300 600

Body weight(excluding clamper)(kg)

455 650
