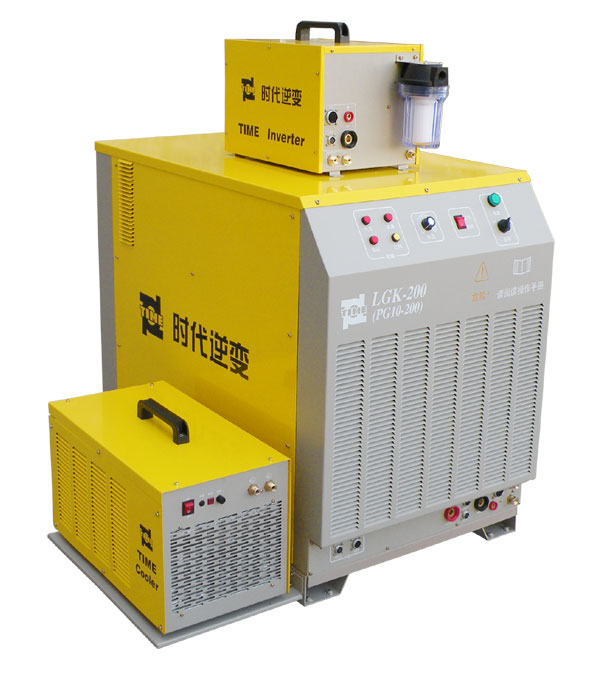

LGK-200(PG10-200/PG20-200)
Main characteristics:
LGK-400(PG20-400)
Main characteristics:
Model |
LGK-200 |
LGK-200 |
LGK-400 |
Company Type |
PG10-200 |
PG20-200 |
PG20-400 |
input voltage |
3 phase 380V±10% 50~60Hz |
3 phase 380V±10% 50~60Hz |
3 phase 380V±10% 50~60Hz |
Rated input power(KW) |
37.5 |
37.5 |
75 |
No-load voltage (V) |
280 |
280 |
280 |
Current adjustment range(A) |
40~200 |
40-200 |
40-400 |
Rated output voltage (V) |
150 |
150 |
150 |
Rated duty cycle(40℃) |
100% |
100% |
100% |
Efficiency |
85% |
85% |
85% |
Power factor |
0.93 |
0.93 |
0.93 |
Maximum cutting through thickness (mm) |
64 |
64 |
100 |
Quality cutting thickness(mm) |
50 |
50 |
80 |
insulation grade |
F |
F |
F |
Case Protection Class |
IP21 |
P21 |
P21 |
Cooling |
Wind |
Wind |
Wind |
Dimension (L×W×G)(mm) |
1130×670×905 |
1130×670×905 |
(1130×670×905)×2 |
weight (kg) |
480 |
480 |
960 |
Gas flow (L/min) |
40~200 |
40~200 |
40~200 |
