Main characteristics:
Model |

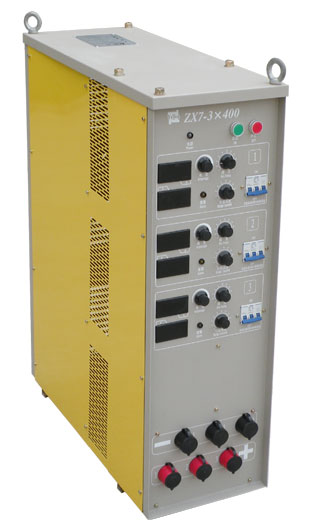

ZX7-3×400 |
ZX7-3×500 |
Rated input voltage |
3-phase AC380V±15% 50/60Hz |
3-phase AC380V±15% 50/60Hz |
Rated output power(kw) |
3×14.4 |
3X20 |
Rated no-load voltage(V) |
75±5% |
75±5% |
No-load loss(w) |
3×200 |
3×200 |
Output current adjusting range(A) |
26~410 |
20~500 |
Rated duty cycle |
60% |
35% |
Work cycle(min) |
10 |
10 |
Power factor(cosΦ) |
0.8 |
0.8 |
Efficiency (η) |
85% |
85% |
Insulation grade |
F |
F |
Case protection grade |
IP21S |
IP21S |
Dimensions (mm) |
796×327×1056 |
796×327×1056 |
Net weight (kg) |
120kg |
120kg |
