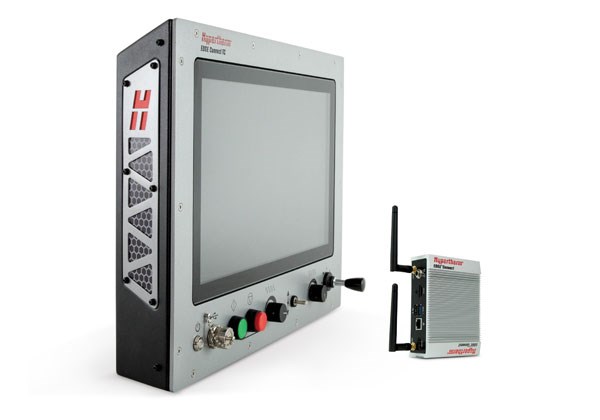

EDGE Connect Hypertherm CNC system
Feature code:
-
Hypertherm’s Phoenix 10 CNC software, Microsoft Window 10 embedded operating system.
-
The operating control panel based on the software and with built-in PLC.
-
Using the patented CutPro Wizard, easy to learn.
-
On-screen software operator’s Console(Soft OpCon).
-
Customs cut charts can be created and controlled in the part program or made available to be CutPro Wizard.
-
Enable on-screen real time monitoring of key process performance parameters while cutting.
-
High-speed digital EtherCAT machine interface and communications with single wire connectivity.
-
One touch access to supporting documentation including cutting optimization tip, consumable change instruction and diagonstic tools in multiple languages.
-
CNC, plasma system and cutting machine diagonsis and repair can be done over the internet.
- Technical parameters
- Photograph
Model
|
EDGE Connect
|
Monitor
|
19' touch screen
|
Processor
|
Intel Celeron J1900, Quad core
|
Memory
|
4G
|
Program memory
|
≥120GB
|
External interface
|
USB 2.0、10/100M network interface
|
Operating system
|
Microsoft Windows10®
|
Power
|
AC220V±10%
|
RFI/EMI shielding
|
Full shielding,grounding
|
Available axis
|
2 axes (Standard),5 axes availabe
|
