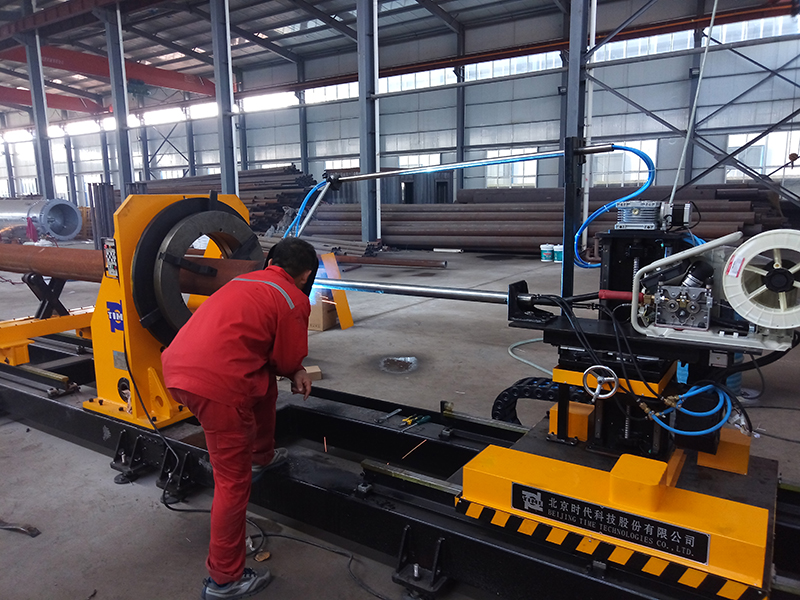

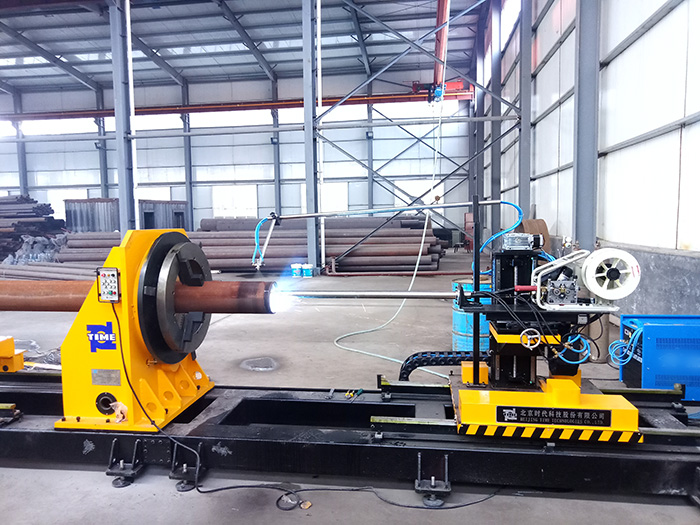

Small pipe inner wall hardfacing equipment

Feature code:
  • Applicable to the repair of pipe, Piston Rod and Jack Cylinder etc.
  • 4-axies CNC control system, whole digitial centralized control system.
  • AVC tracking and automatic arc length setting of TIG mode.
  • TIG welding with digital wire feeder, high-speed oscillation.
  • Function of welding beads memory and resuming welding at breakpoint.
  • Spiral /step, linear/ circumferential,TIG or CO2/MAG hardfacing are optional.

Model

TIG

CO/ MAG

Hardfacing length (mm)

1200(Can be customized)

Inner diameter of tube (mm)

≥Φ50

≥Φ150

Outer diameter of pipe (mm)

Φ950 (Can be customized)

Weight of pipe (kg)

Can be customized

Thickness per layer (mm)

2.5~3.5 (monolayer)

Diameter of tungsten (mm)

Φ4

--

Wire diameter (mm)

Φ1.2 (Solid wire)

Φ1.6 (Flux wire)

Arc striking mode

High frequency

Short circuit

Rotating speed (r/min)

0.01~2

Rated welding current (A)

400

500

Duty cycle

60%

Note: The above parameters are for TIME standard product configurations, and can be customized according to the customer’s requirements.
